4-Link Rear Suspension

Original price was: $3,023.00.Current price is: $2,721.00.

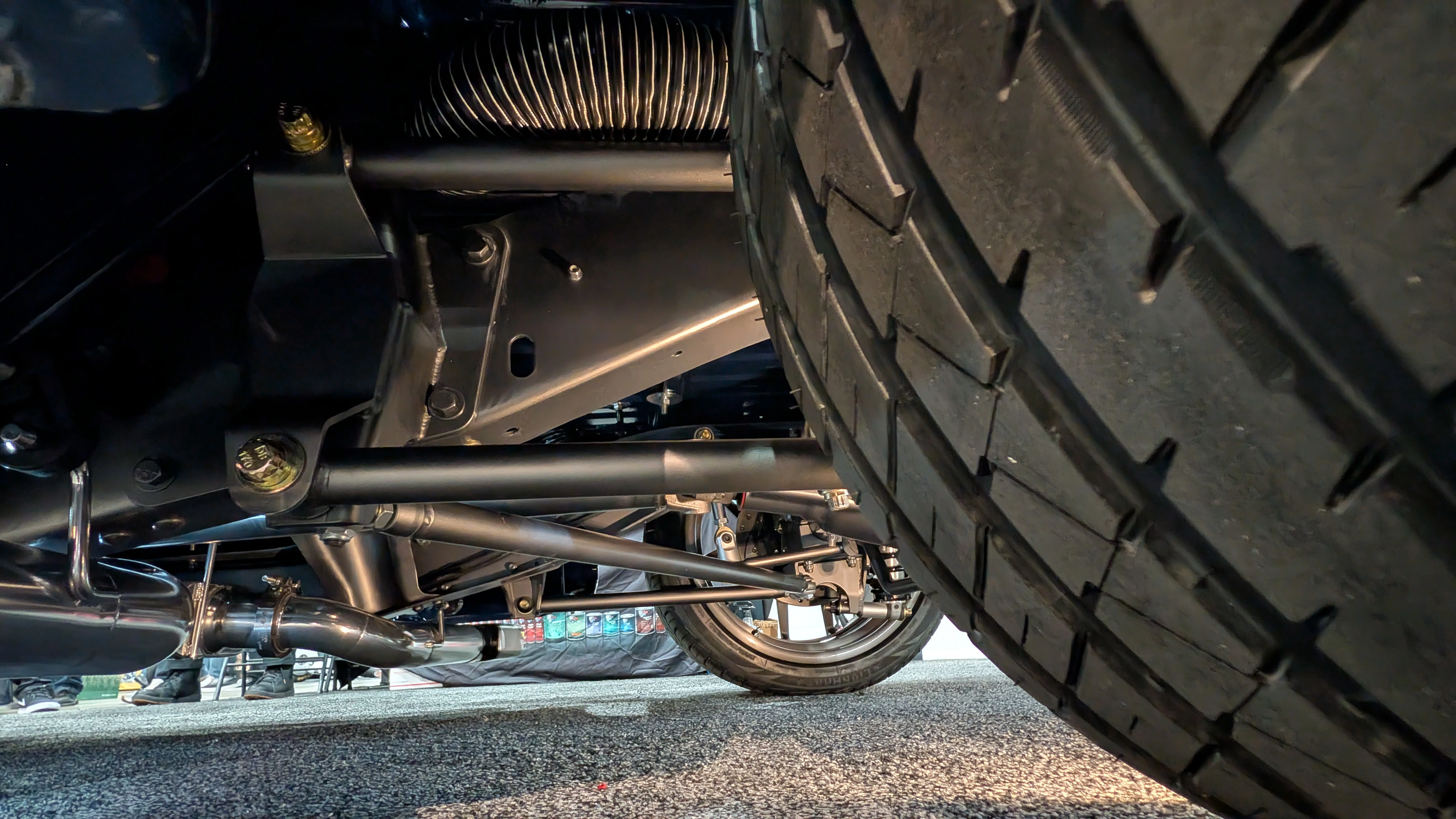

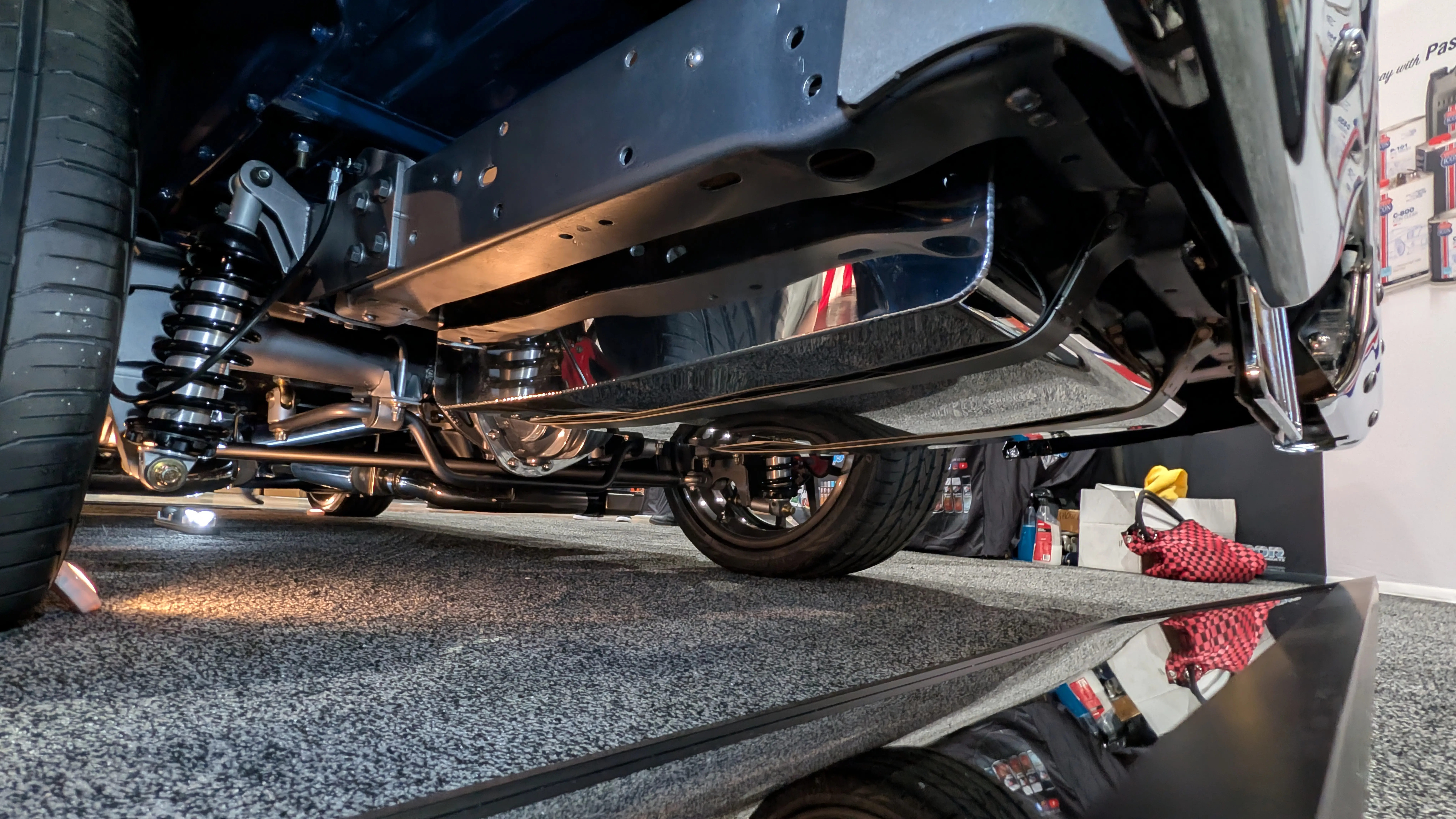

TCI Engineering’s 1973-1991 Chevy K5 Blazer 4-Link Rear Suspension provides a significant ride height drop, smooth ride, better handling, reduced weight and greater axle control. This new kit offers the maximum drop available without bed floor modifications, excellent performance, all while maintaining the rear seat. Using a unique design axle bracket that captures the axle tube 360 degrees we were able to make the bracket bolt on, yet  be extremely rigid. Fully boxed c-notches capture both the outside and inside of the frame using 3/16” plate. The c-notches were designed with the factory 12 bolt rearend in place. At full compression there is roughly ¼” clearance between the top of the axle housing and the bed. This maximizes the amount of drop and wheel travel. The 4-Link frame brackets are constructed from boxed 3/16” plate as well. The frame brackets attach to the same locating holes that the factory leaf spring brackets used making installation very simple. 1.25” O/D link bars come standard and are designed to handle the abuses of a drag strip yet articulate well for street or autocross use.

Adjustable 4-Link bars allow fine tuning of wheelbase/pinion angle, eliminate wheel hop and provide greater axle control. Ridetech 26 way adjustable coil-overs come standard. Adjustable coilover mounts offer 3 positions of height adjustability. While fine tuning of height can be done with the shock body. At the lowest static setting the fender to ground distance is 24.50” with 29” tall tires.  Energy Suspension provides the polyurethane bushings with lubrication valleys and come with their patented poly lube. Only American made steel is used to manufacture TCI Engineering components.

The installation mostly requires drilling and bolting in components. There will be some body modification required to the subfloor where the 4-Link bracket bolts up. This was the only way we could achieve proper geometry. We reuse as many factory bolt holes as possible to make installation as straight forward as possible. The 1973-1991 K5 Blazer 4-Link Rear Suspension kit will work with your factory rear axle. Complete 9” axle housings are available fully welded and ready to be bolted in.

All TCI Engineering products come with our Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. Any items built in house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty. Ridetech 26 way adjustable million mile warranty coilovers are optional.



Currently 5-DAY Lead Time
Share
  • 1.25” Heavy Duty Upper & Lower link bars with adjusters
  • Greasable urethane bushings
  • Heavy Duty Bolt-in link bar frame brackets
  • Ridetech single adjustable coil-over shocks
  • Heavy Duty frame brackets with built-in C-Notches
  • Track locating bar
  • Heavy Duty bolt-on axle brackets
  • Hardware kit
  • Detailed instruction manual
  • Dramatically improve handling
  • Lowered stance and center of gravity
  • True bolt-in with no cutting into the bed required
  • Reduced unsprung weight
  • All heli-arc welded for the highest quality and strength
  • Equal length adjustable 4-link bars eliminate wheel hop
  • Fully adjustable ride height to set stance exactly where you want it
