’63-’87 C10 Pro Touring IFS
Original price was: $6,552.00.$5,897.00Current price is: $5,897.00.

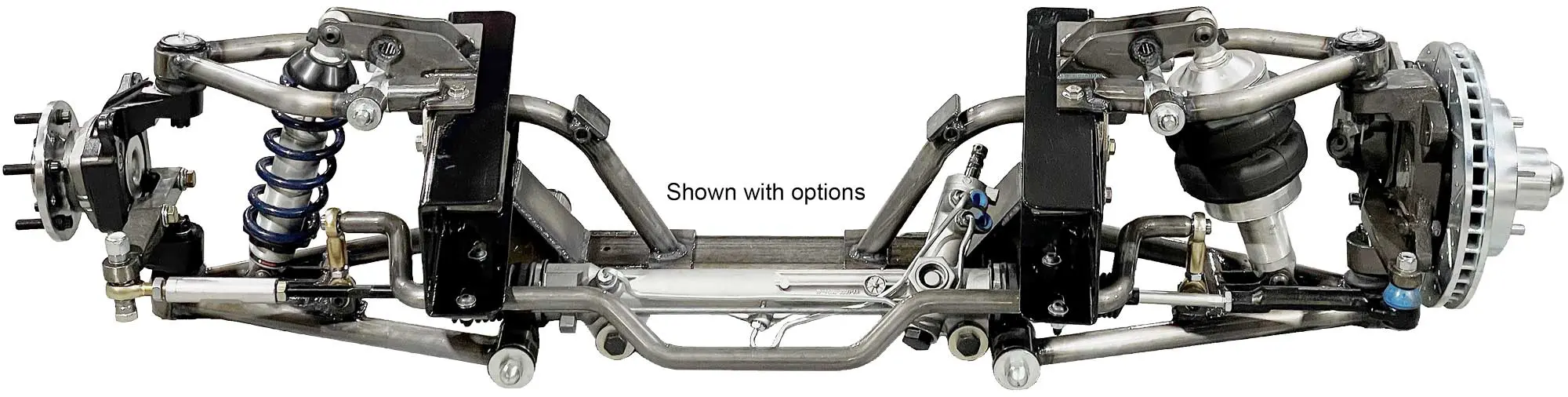

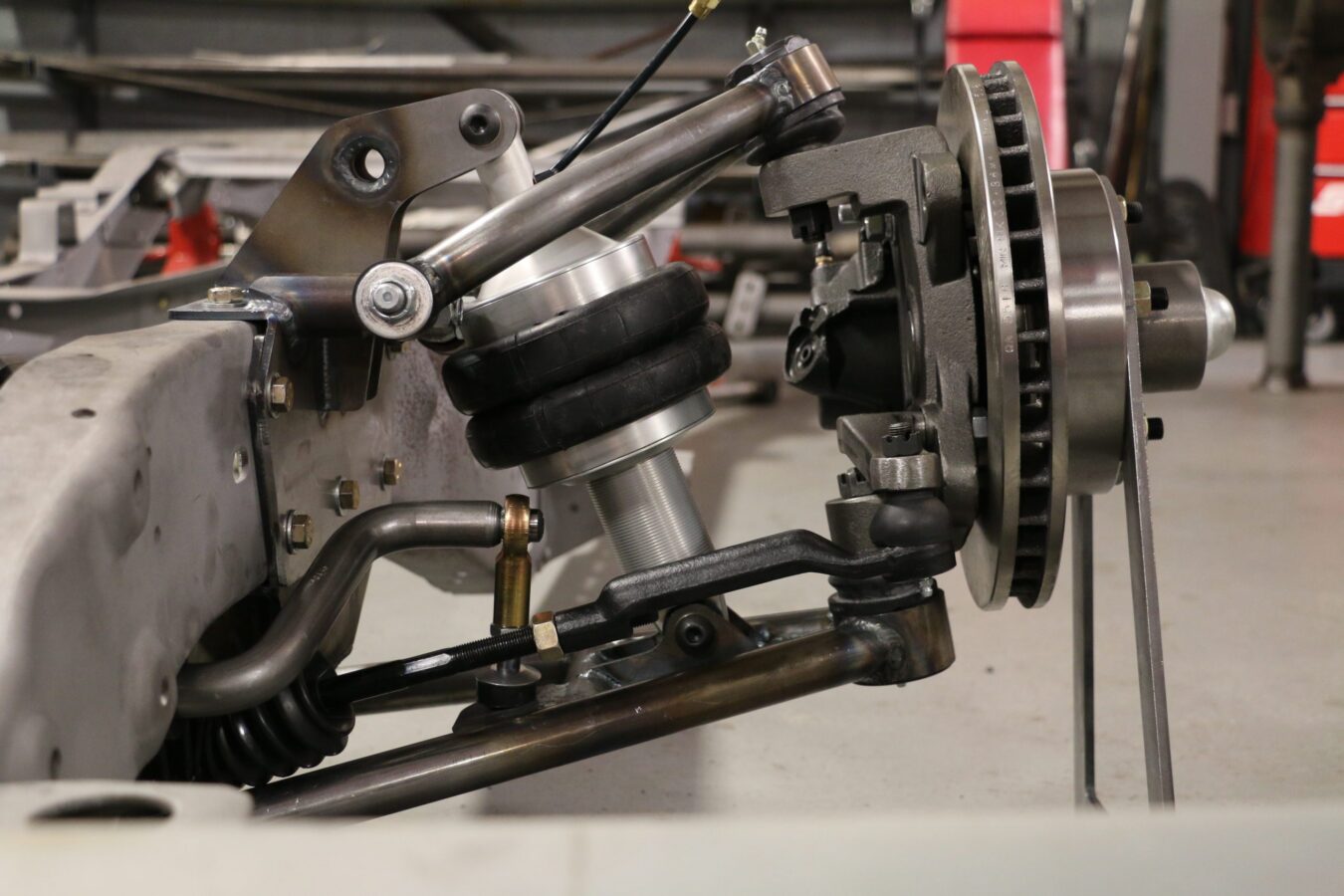

TCI Engineering’s 1963-1987 C10 Pro-Touring IFS was designed to bring your classic truck into the 21st century. Providing both ride comfort and incredible handling, this clean sheet of paper design has no compromises. Our engineers set out to design a suspension system that would be easy to install, add rigidity to the stock frame, save weight, and provide lasting performance. Through years of testing we have maximized the capabilities of what a truck should be. This front end is based on our Custom designed Modular spindle and bolt on steering arms. Proprietary design and geometry maximizes performance without sacrificing comfort. Bolt-on crossmember sits inches above the bottom of the stock frame providing excellent ground clearance while substantially lowering the front of your truck. Custom length control arms top & bottom control key features like camber gain, motion ratio, & instant center. Alignment adjustments are made simple by shimming the stud mounted and slotted cross shafts on the upper control arms. The rack & pinion and bolt-on steering arms work in unison to create quick steering, positive feedback and also keep bump steer in check. Our triple wall crossmember mounting design & triangulated engine mounts provide incredible frame strength. All said and done our 1963-1987 C10 Pro-Touring IFS is 85 pounds lighter than the factory front end.
All components are TIG welded for the highest quality, strength and finish available. All front ends come standard with 1,000,001 Mile Warranty Ridetech Coil-over shocks which provide both height adjustment and 26 way ride comfort control. Standard brakes consist of 12″ discs with GM calipers. We offer many Wilwood brake upgrades from Mild street use to full blown Road Race. We only utilize heavy duty wear componentry to provide safe, long lasting enjoyment. Whether you’re cruising to the show on a Sunday morning or tearing up the track on a Saturday afternoon the TCI Engineering 1963-1987 C10 Pro-Touring IFS has you covered.
All TCI Engineering products come with our Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. Any items built in house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty
Click HERE to watch the unboxing and installation video of this Pro Touring IFS.
- Custom TCI Engineering Modular Heavy Duty Truck Spindle Design
- Bolt-on Crossmember
- Bolt-on upper control arm and shock mount
- RideTech Single Adjustable Coil-Over Shocks
- Black powder coated coil springs
- 1” Performance anti-sway bar
- 1 1/8” x .156w U.S. DOM Steel upper tubular A-arms
- 1¼” x .120w U.S. DOM Steel lower tubular A-arms
- Power rack and pinion standard

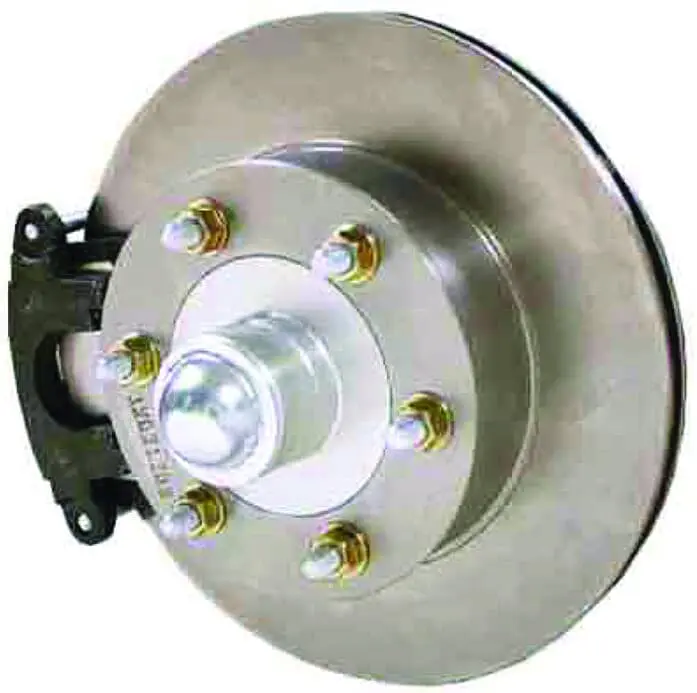

- 12” Vented rotors
- 5 x 5” Truck bolt pattern
- Big Bore Calipers
- Energy suspension – polyurethane greasable bushings

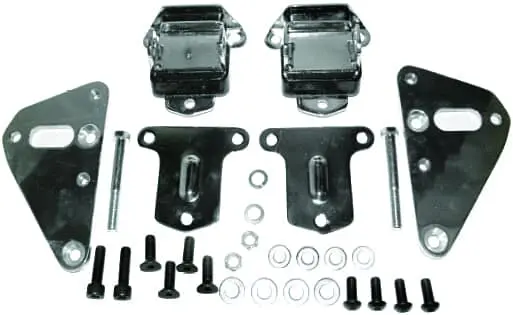

- Engine stands to accept: Small block, big block and LS engines (Optional mounting brackets and oil pan required with LS)
- TCI IFS is 82 lbs. lighter than stock clip for better balance, compliant handling & front to rear weight bias
- Crossmember delivers bolt-in 5″ drop
- The suspension gives the truck a lower center of gravity with less body roll
- Custom TCI Engineering Modular Heavy Duty Truck Spindle Design
- Moog – Heavy duty upper & lower ball joint
- Reinforced 3/16” thick crossmember using our one piece lower control arm pin design
- Front End provides a lowered stance and retains ground clearance
- Dramatically improves handling and braking
- Energy Suspension polyurethane greasable bushings help insulate road noise
- True bolt-in with no cutting or welding required
- Utilizes multiple factory mounting points to reduce install time & possible install errors
- Rotors, spindles & brakes come assembled with bearings packed with hi-temp grease
- All TIG welded for the highest quality and strength
- Made in the USA
- Lifetime Warranty on all TCI Engineering manufactured parts
