Custom IFS & 4-Link Rear Chassis

SKU: 101-1225-00 Categories: ,

Original price was: $14,399.00.Current price is: $12,959.00.

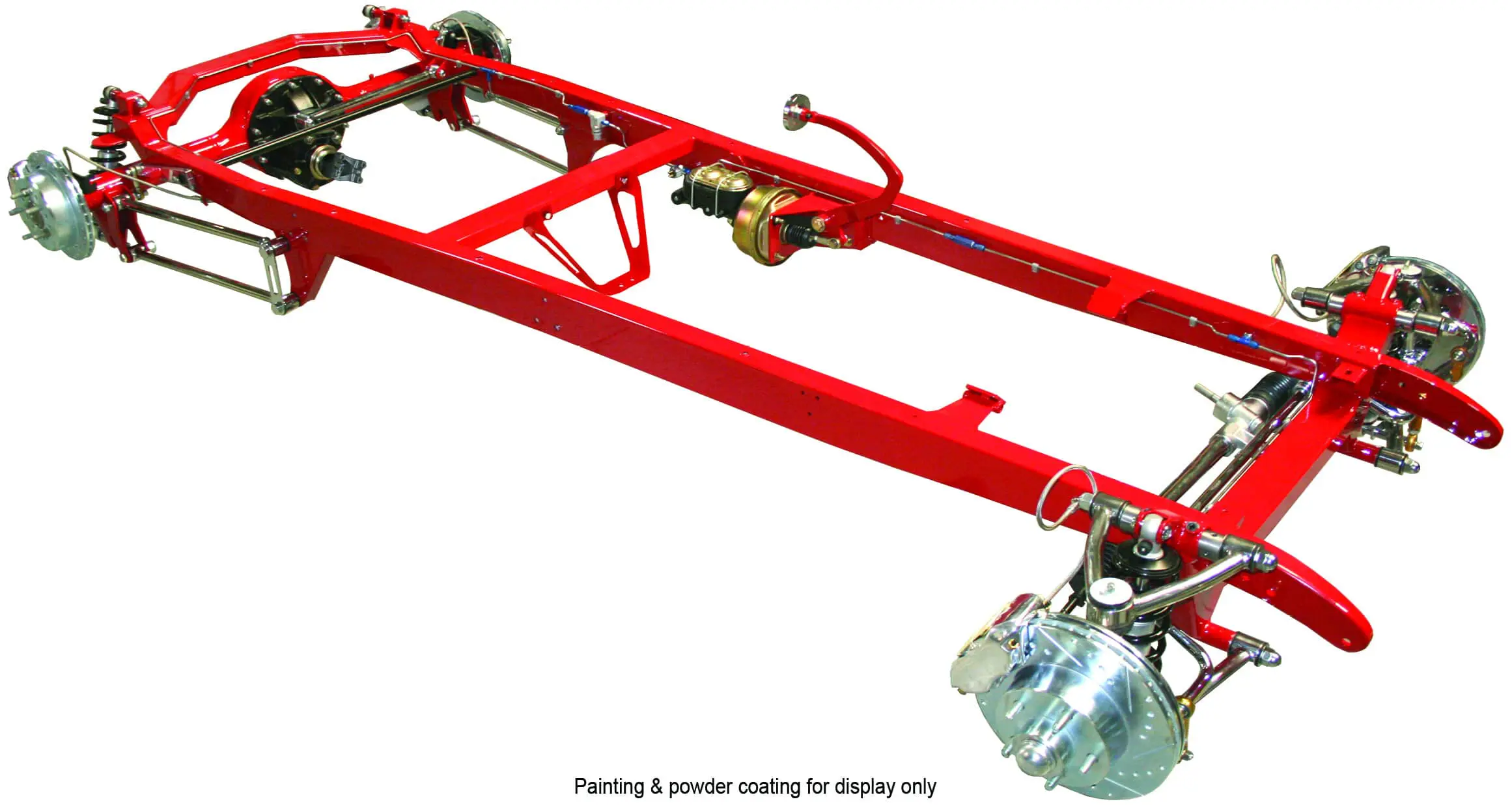

Total Cost Involved Engineering proudly offer frames and complete chassis for the popular 1928-1931 Ford Cars & Trucks. Our Model A Custom IFS and 4-Link Rear Chassis feature boxed main rails constructed from 2 x 4 x .125w rectangular U.S.-supplied steel, ensuring increased rigidity while retaining the original profile. These chassis are perfect for cruising, auto-crossing, drag racing, or creating fully polished show-stoppers and everything in between. With a wide variety of options, you can custom tailor a chassis to meet your specific needs.

Our front end is based on a custom-designed spindle with bolt-on steering arms and proprietary geometry to maximize comfort and performance. The offset stainless eccentric adjuster provides easy camber and caster adjustments. A rear-mounted rack and pinion & anti-sway bar leave the visible side of the crossmember open and clean. Available with dropped or stock height spindles, you can achieve a ride height that matches your specific desires. 1,000,001 Mile Warranty Ridetech Coil-over shocks come standard and provide further height adjustment and 26 way ride comfort control.

The 4-Link Rear Suspension creates a lowered stance for superior handling by lowering the center of gravity. Smooth ride, better handling, minimal weight and greater axle control are just the beginning. Adjustable 4-Link bars allow fine-tuning of the wheelbase/pinion angle, eliminate wheel hop, and provide greater axle control. Height-adjustable coil-overs and adjustable mounting positions offer many options for desired ride height. Energy Suspension provides polyurethane bushings with lubrication valleys and their patented poly lube. Complete Currie 9” axle housings are available, fully welded and ready to bolt in. Only American-made steel is used to manufacture this TCI Engineering Model A Custom IFS and 4-Link Rear Chassis.

All TCI Engineering products, including Model A Custom IFS and 4-Link Chassis comes with our Dual Warranty. 6 Year, 60,000 Mile Warranty on wear and tear items like bushings, coil-overs, & ball joints. Any items built in house by TCI Engineering such as link bars, control arms, spindles, crossmembers, etc come with a Lifetime Warranty.



Currently, 4-WEEK Lead Time!
Share
  • Complete frame with crossmembers
  • Complete front suspension
  • Complete rear suspension
  • 9″ Hot Rod Currie housing with your choice of gear set (3.00-4.56)
  • 31 Spline axles with new tapered bearings, seals and axle studs
  • Small block engine and automatic transmission mounts
  • Pedal assembly with master cylinder and booster
  • Wilwood proportioning & check valves
  • 12” Hi-Tech Rear Disc (GM Caliper)
  • Custom steel brake lines
  • Body & Hood latch brackets
  • Core support mount
  • This chassis is engineered for a cleaner look with modern handling characteristics
  • Lowered stance and center of gravity
  • Dramatically improve ride quality
  • Engineered using only U.S. made steel for exact tolerances and reliability
  • Custom spindle and bolt on steering arm provides superior performance and ride quality
  • Offset Eccentric upper control arm mounting provides easy alignment, tuning adjustability and control of camber and caster
  • Ridetech Coilovers provide 1,000,001 Mile Warranty
  • 3/16” heavy duty Cross member provides superior strength
  • Heavy duty upper and lower screw-in ball joints for additional strength and durability
  • Heavy duty upper and lower control arms provide added safety and strength
  • Vented rotors and big bore calipers provide excellent braking capabilities
  • Energy Suspension bushings provide long lasting performance
  • Performance front anti-roll bar provides superior handling characteristics
  • Fully plumbed brake lines with pedal, master & booster shorten fabrication time
  • Reduced unsprung weight
  • All heli-arc welded for the highest quality and strength
  • Equal length adjustable 4-link bars eliminate wheel hop
  • Fully adjustable ride height to set stance exactly where you want it
